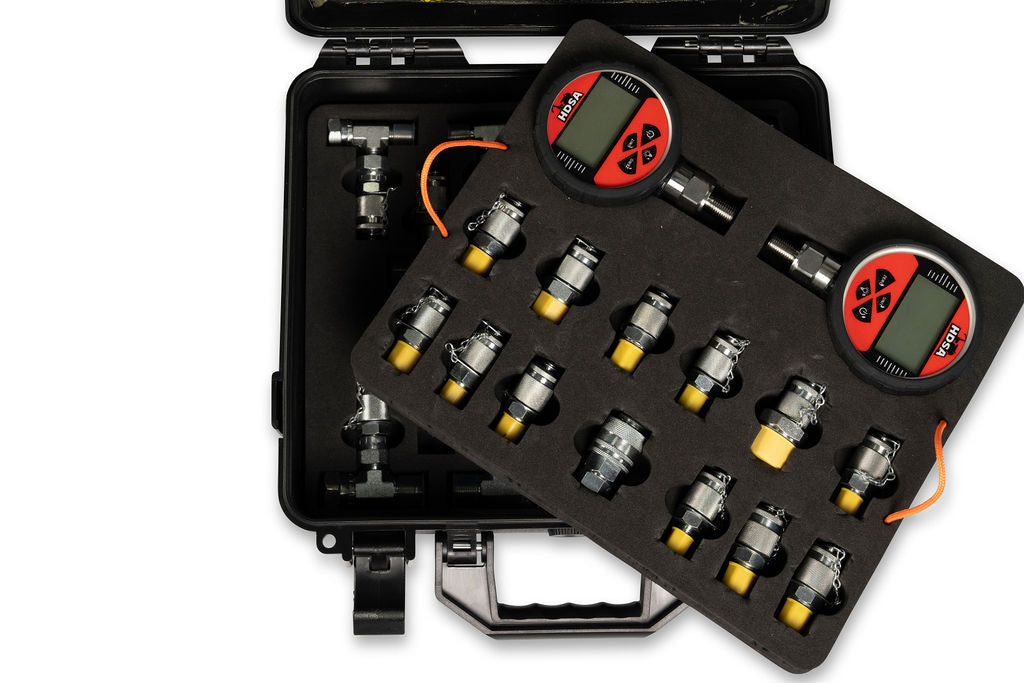

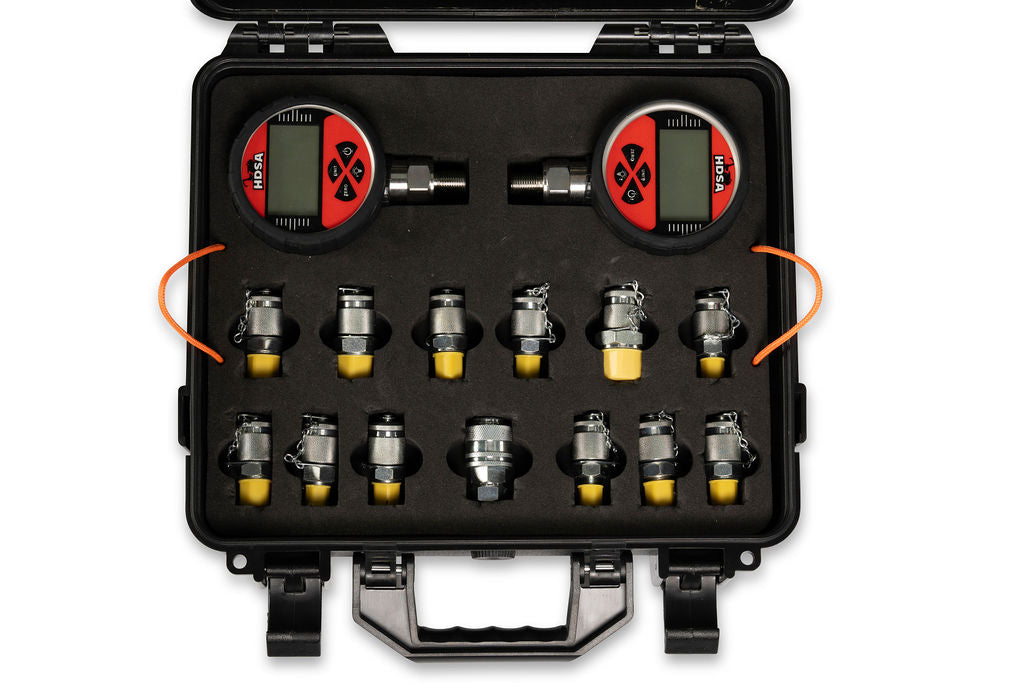

Built for serious diagnostics in the field, this Digital Hydraulic Gauge Kit delivers precise pressure readings up to 60 MPa with 0.4% accuracy. Featuring a rugged digital gauge, 27 adaptor fittings covering metric, imperial and UNF threads, plus two high-pressure rated hoses – all packed in a solid carry case. Designed for professionals who need fast, reliable hydraulic testing across a range of machines and systems.

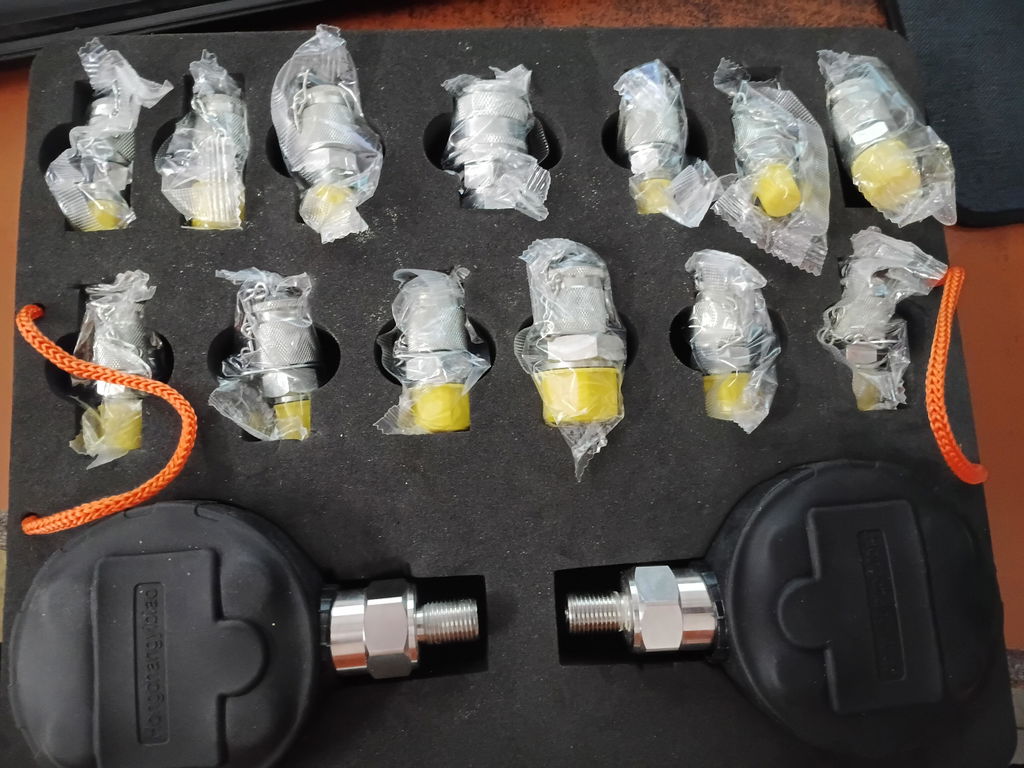

Adaptor fittings
Rated to 450 Bar (6526.7 Psi)
- Inch thread: G1/8, G1/4, G3/8, G1/2,
- American thread: UNF7/16, UNF9/16,,
- Metric thread: M10*1, M10*1.25, M12*1.5, M14*1.5, M16*1.5, M18*1.5
- 1 CAT quick connector

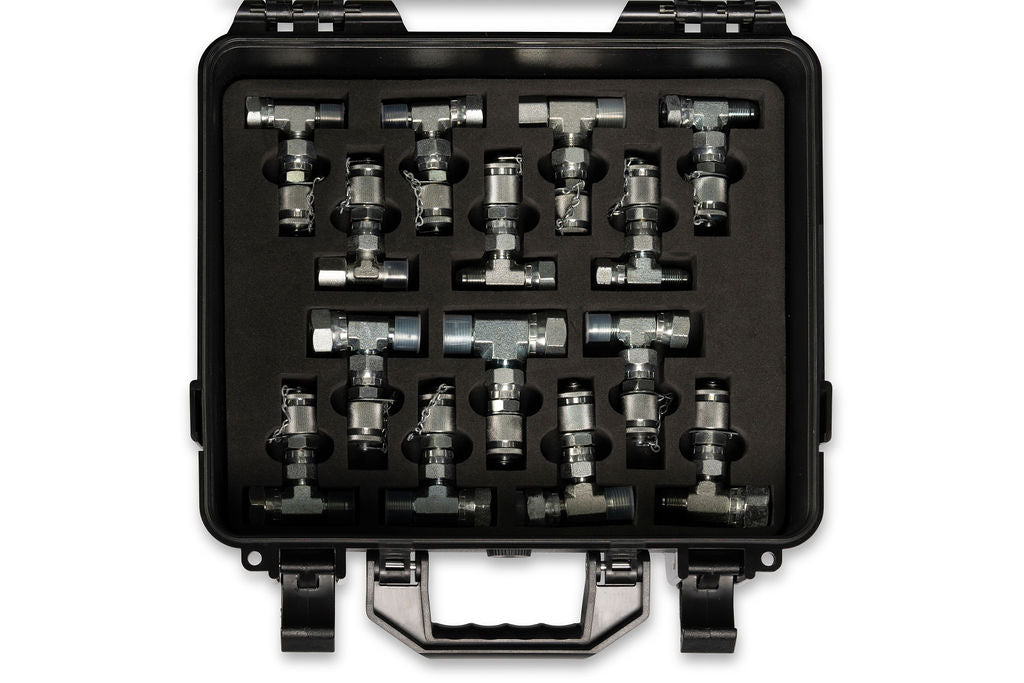

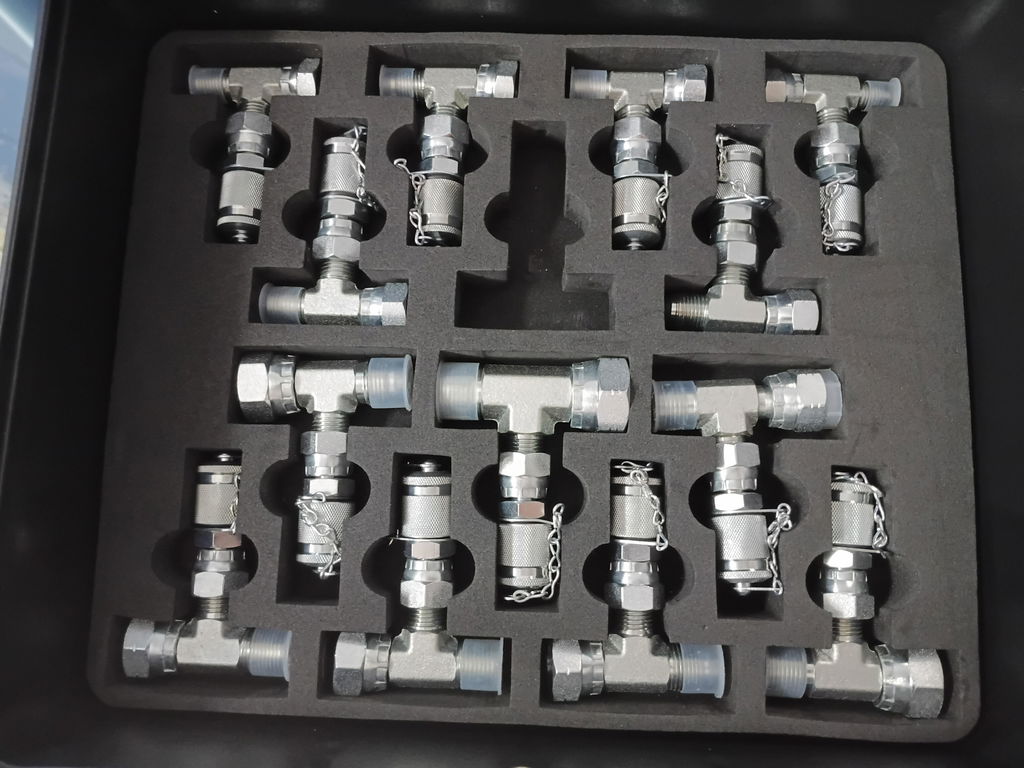

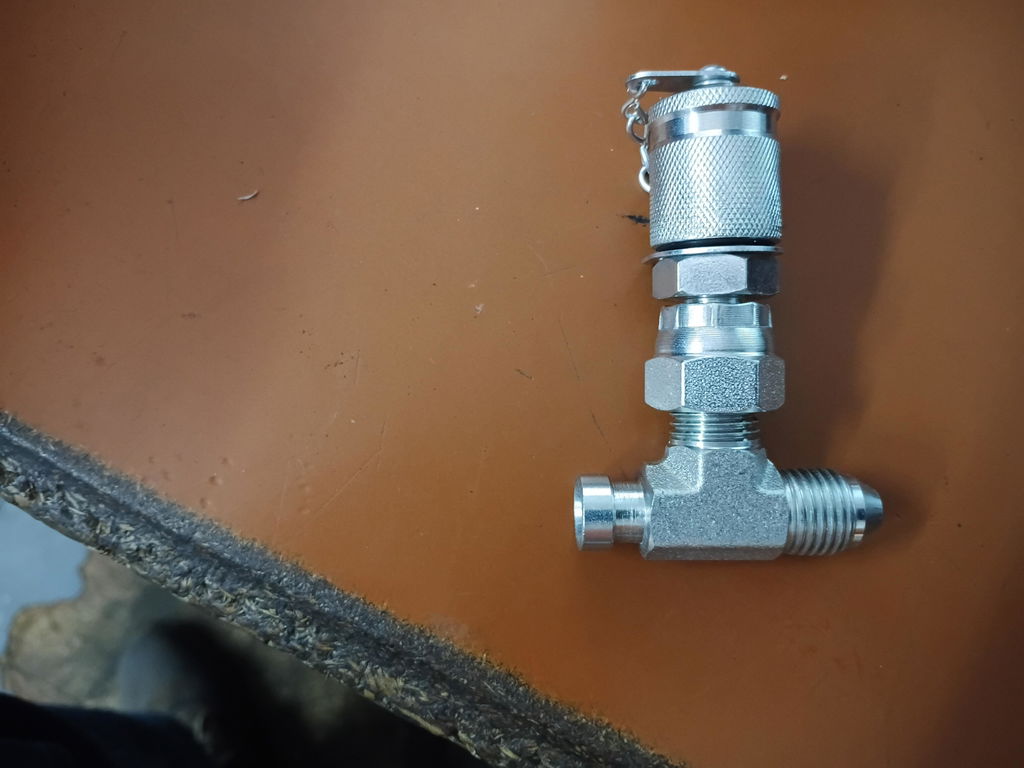

Inline test fittings
- Inch thread 60 degree inner and outer cone end seal internal and external thread tee G1/4X19, G3/8X19,
- American threaded ORFS end plane internal and external thread seal tee, UNF9/16X18, UNF11/16 X16, UNF13/16X16
- Metric thread 24 degree inner and outer cone end seal internal and external thread tee: M14*1.5, M16*1.5, M18*1.5
- Japan metric thread 60 degree inner and outer cone end seal internal and external thread tee: M14*1.5, M18*1.5
- American thread 74 degree inner and outer cone end seal internal and external thread tee: UNF7/16X20, UNF9/16X18,
- Japan British tube 60 degree inner and outer cone end seal internal and external thread tee: G1/4X19, G3/8X19

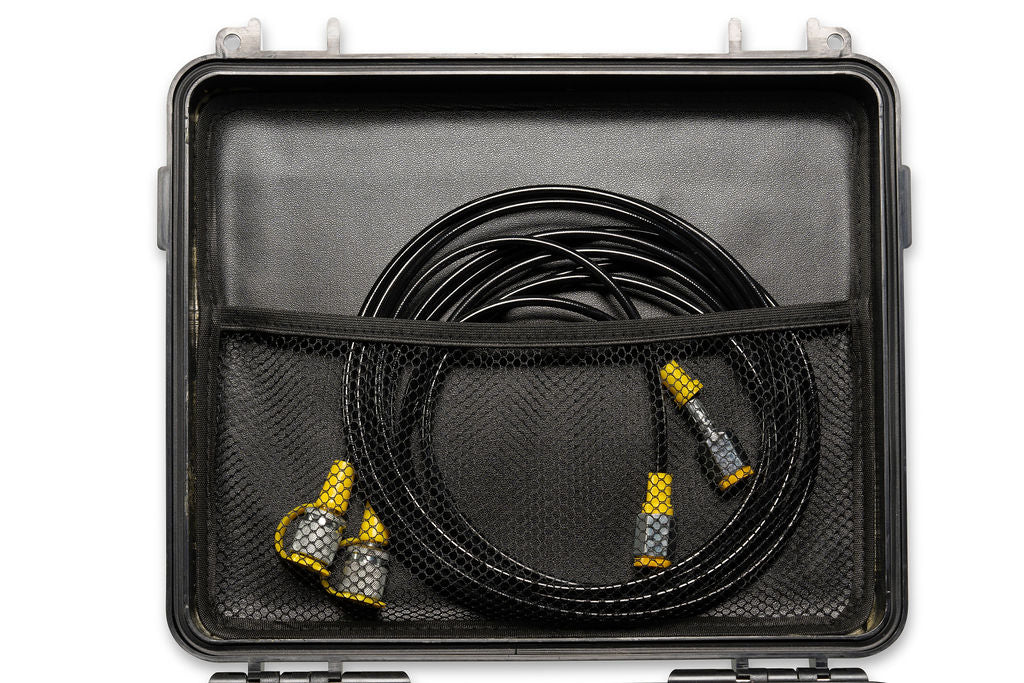

Pressure hoses
Rated to 630 Bar (9137.38) Minimum burst pressure 1700 Bar
DN2 (inner diameter 2) pressure line 1.5M 1 line, 2.5M 1 piece connector M16X2 pin type at one end, G1/4 female thread plane with O-ring seal at the other end
